western electric 4014 front

CARBONS & DOUBLE BUTTONS

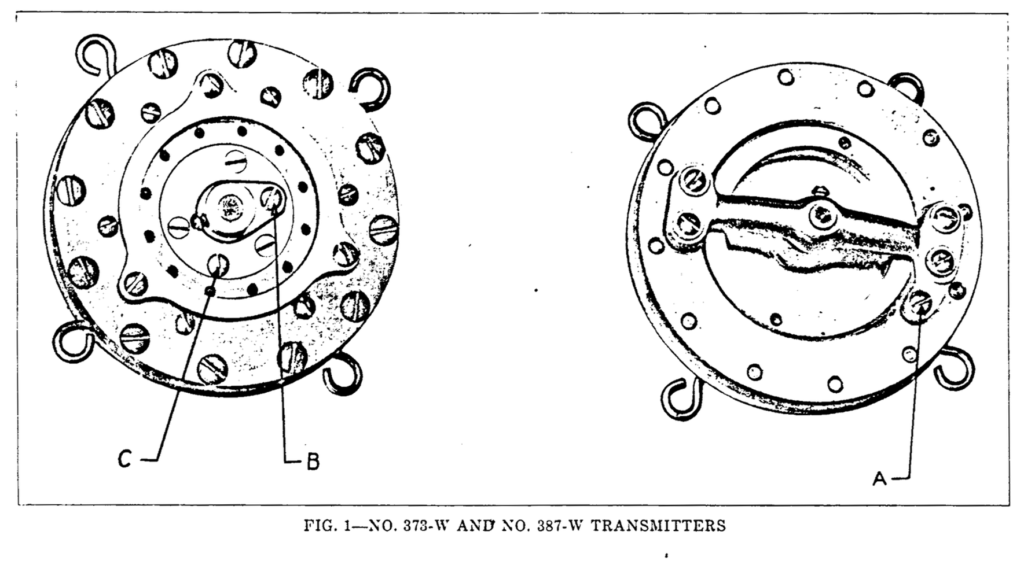

we 373 & 387 transmitters

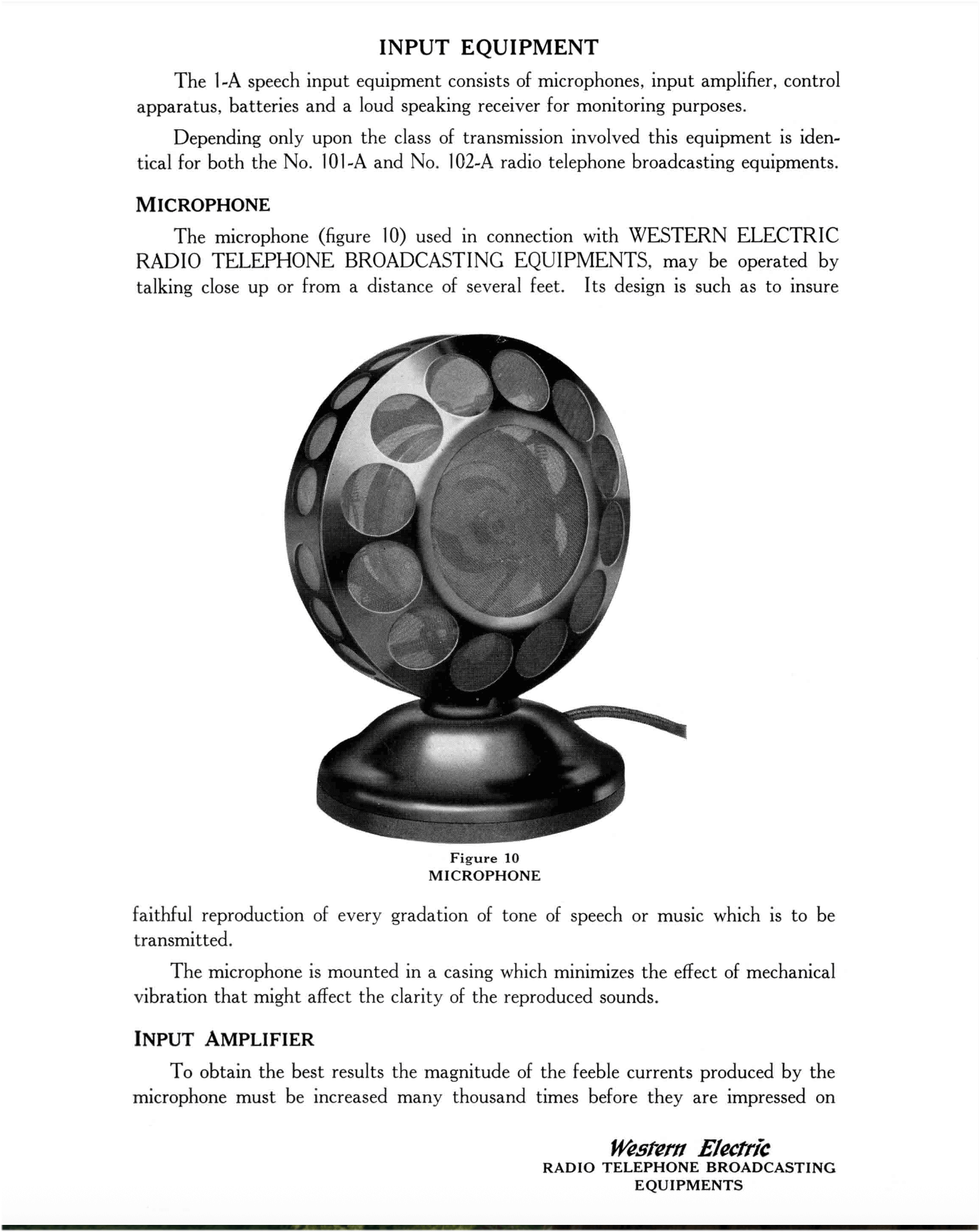

western electric 373 mic in b1 housing we catalog 1923
Western Electric 373 in B1 housing – WE Radio Telephone Broadcasting Equipment catalog 1923

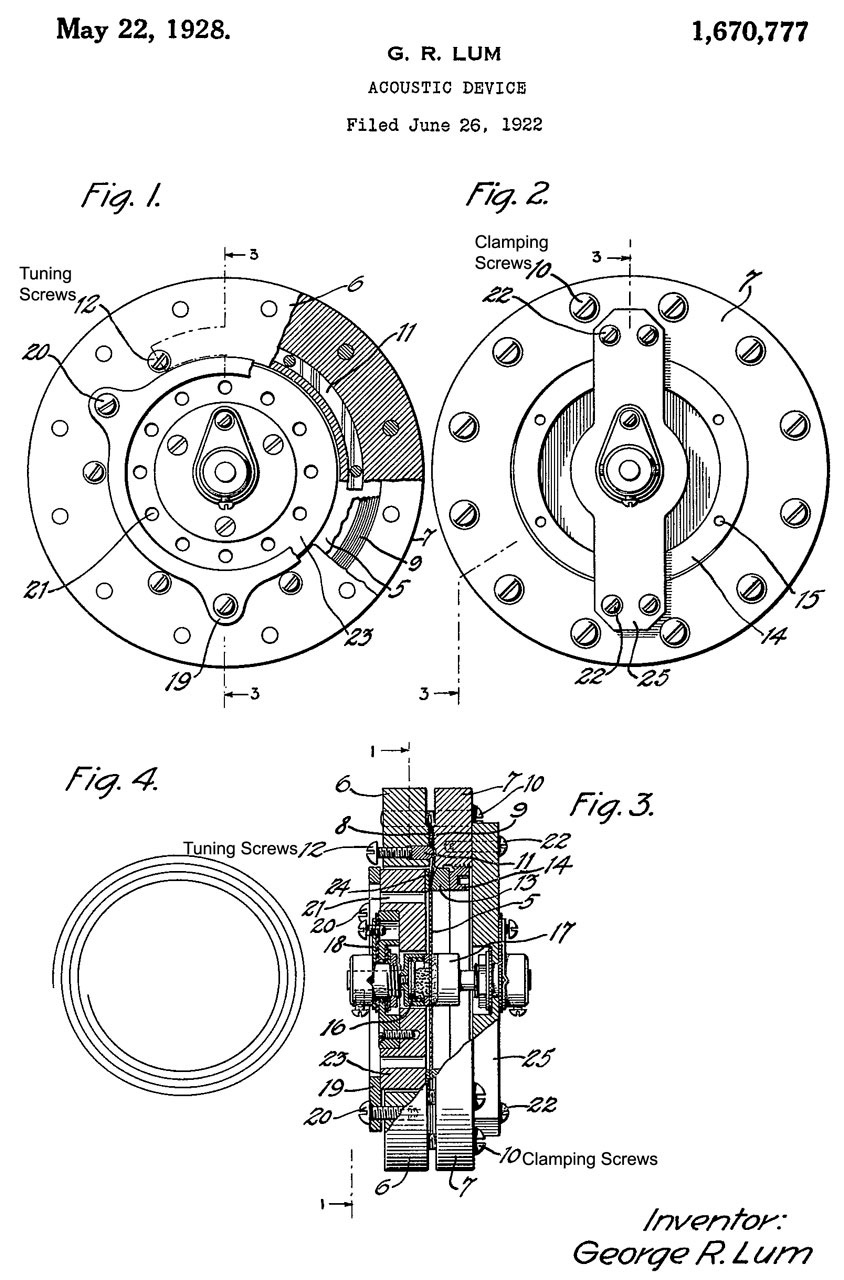

we 373 patent 1922

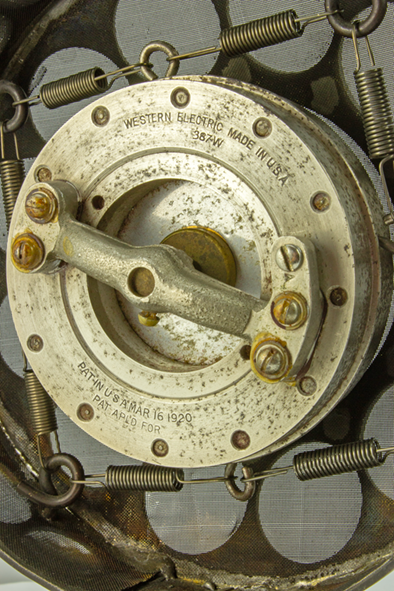

western electric 387 in ring xl
WE 387 transmitter ca. 1924

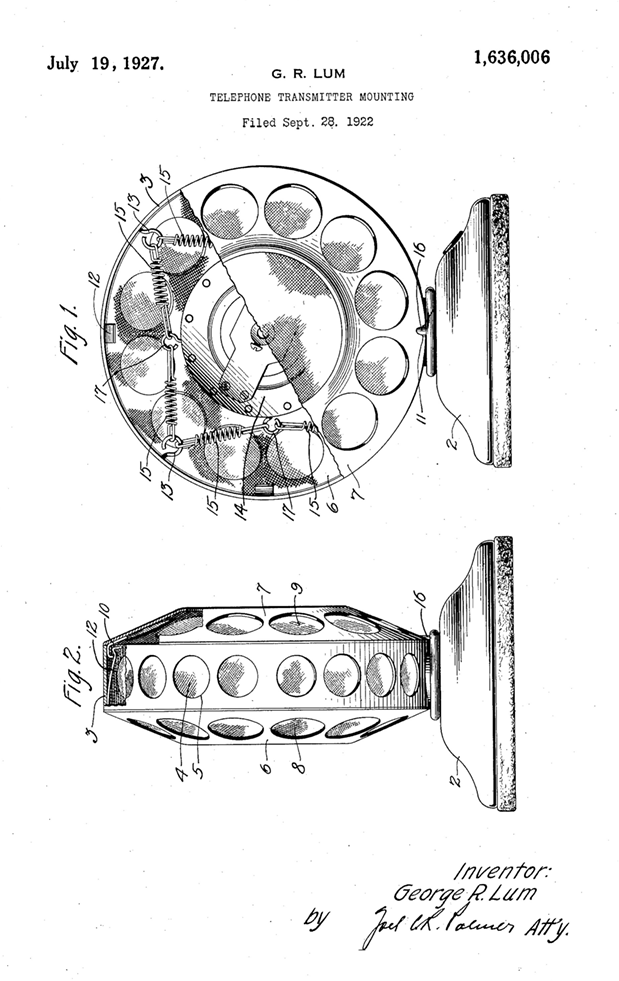

western electric b1 housing patent
The 373 and 387 required the housing as an RF shield,
the later 600A was intended for open ring mounting and had its own shield

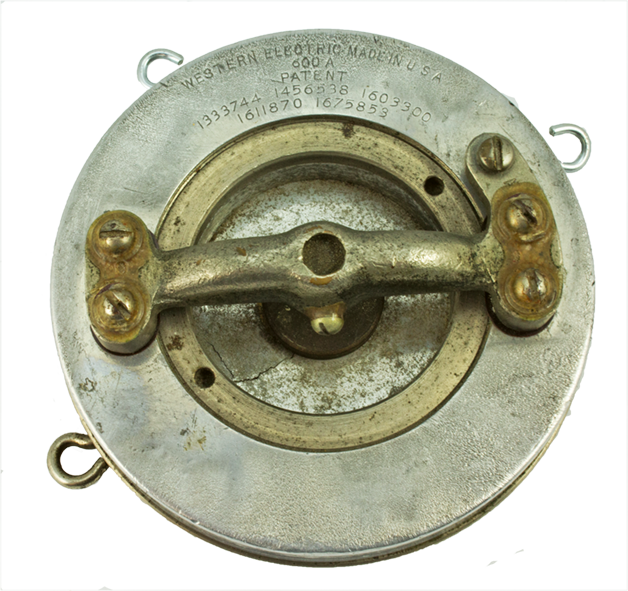

western electric 600a
WE 600A ca. 1926

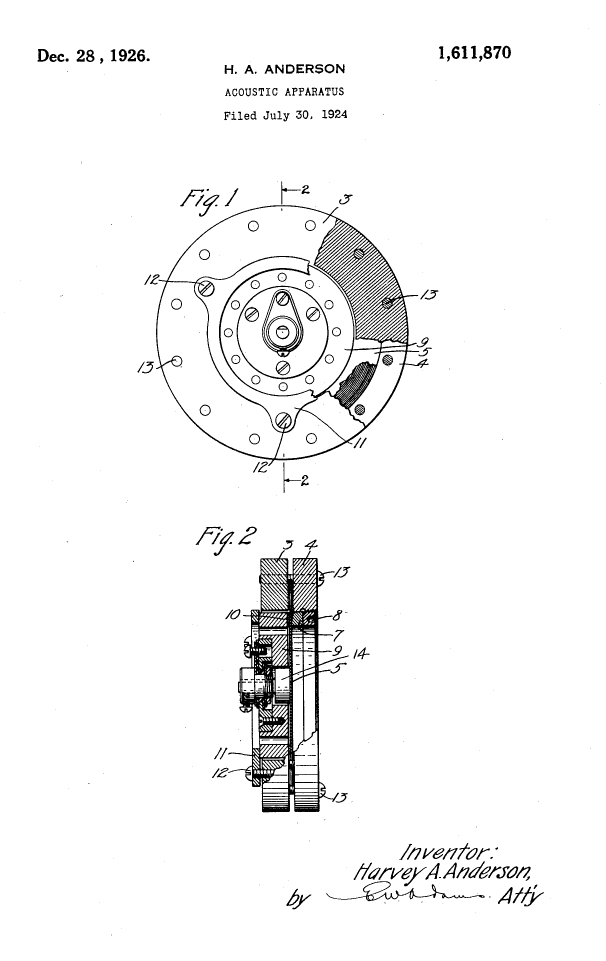

we 600a patent p1
WE 600A patent

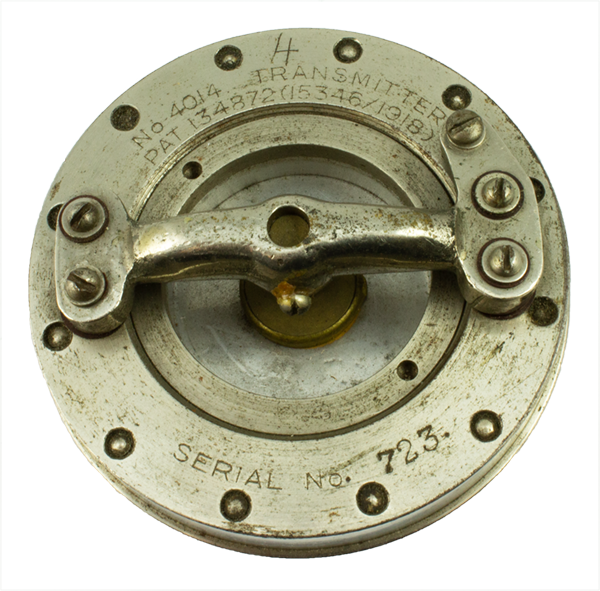

western electric 4014 front
The WE 4014 is a rather mysterious model: I have not been able to find any info, it closely resembles the 387 and is probably from the mid twenties.
